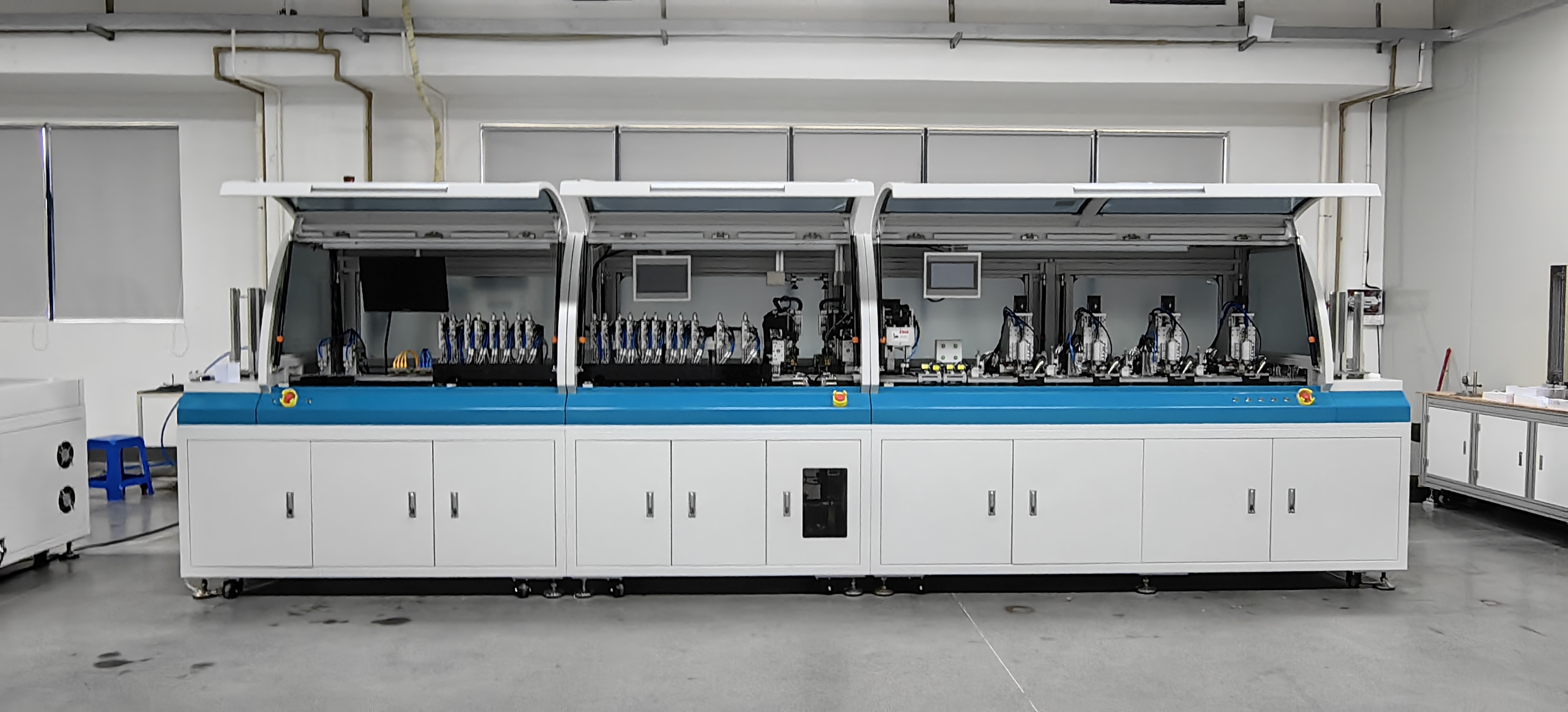

The equipment is mainly suitable for packaging and testing of telecommunication card (SIM card); its functions includeautomatic milling slot, secondary cleaning, milling slot detection, chip cutting and packaging, hot welding + cold welding, ATR detection, chip appearance detection, etc. The equipment is compatible with 1 card 1 core, 1 card 2 core, 1 card 4 core telecom card (SIM card) milling slot packaging.
technical parameter
1. Equipment size: L6050 x W1100 x H1850 (mm)
2. Weight of the equipment: 3,500 KG
3. Power supply voltage: AC380V, 50 / 60Hz
4. Rated power: 22KW
5. Compressed air: 6 KG / cm 2
6. Gas consumption: 450L / min
7. Milling groove accuracy: depth + / -0.01mm, position +/ -0.03mm
8. Hot welding temperature: 0-400℃
9. Production speed: 6000-8000 pieces / hour
10. Control mode: PLC + industrial control machine
Functional configuration
1, the double card box automatically switch into the card, uninterrupted production
2. Doublecard (heavy card) detection + card directiondetection
3, milling slot + vacuuming cleaning
4. Secondary cleaning (blowing + vacuum)
5. Milling slot test (CCD)
6, chip strip step in moving + positioning detection + punching chip detection(Bad chips are automatically removed)
7, chip cutting + chip implantation
8, single chip: 3 station hot welding + 1 station cold welding
9, and the ATR detection method
10. CCD detects the appearance of the chip and the packaging area
11. Automatic elimination of bad cards
12. Double card box automatically switch over cardcollection (uninterrupted production)
13, the equipment configuration of water chiller + vacuumcleanerThe equipment is mainly suitable for packaging and testing of telecommunication card (SIM card); its functions includeautomatic milling slot, secondary cleaning, milling slot detection, chip cutting and packaging, hot welding + cold welding, ATR detection, chip appearance detection, etc. The equipment is compatible with 1 card 1 core, 1 card 2 core, 1 card 4 core telecom card (SIM card) milling slot packaging.
