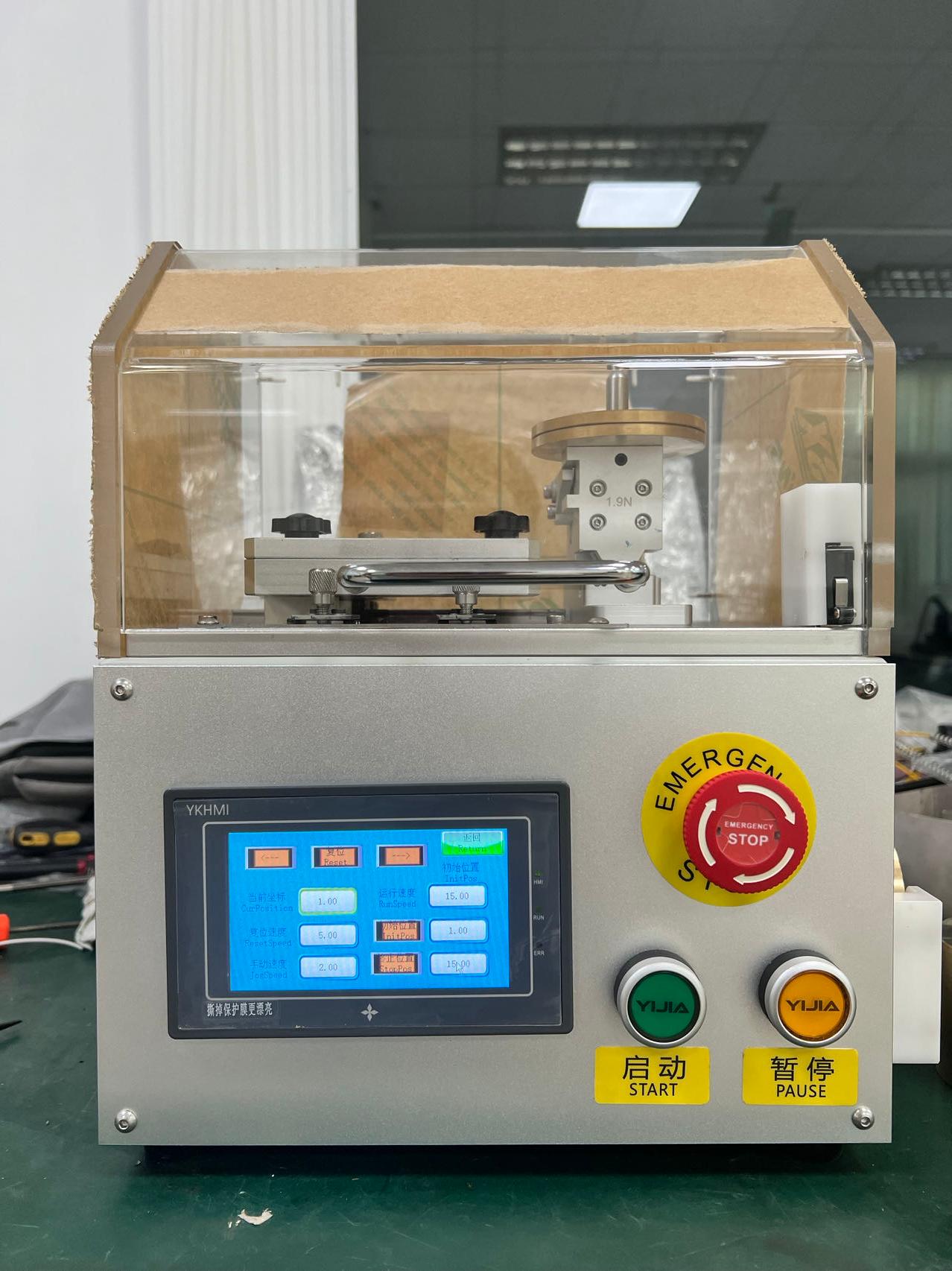

Equipment Specifications:
1. Dimensions: L450 x W410 x H650 (mm)
2. Weight: 36KG
3. Power Supply: AC220V, 50/60Hz
4. Rated Power: 0.5KW
5. Test Frequency: 0.5Hz (customizable by the user)
6. Compatible Cards:
1-card-1-chip, 1-card-multiple-chips
Tests along both long edge and short edge directions
7. Control System: PLC + Servo Motor + Touchscreen
Functional Features:
1. Complies with ISO/IEC 10373-1:2020 testing standard.
2. Compatible with 1-card-1-chip and 1-card-multiple-chips configurations.
3. Tests both long edge and short edge directions.
4. Capable of testing chips in any position on the card.
5. Test frequency is set to 0.5Hz by default but can be customized through the touchscreen if needed.
6. Test frequency is controlled by the speed of a servo motor, ensuring precise accuracy.
7. After completing the number of tests set by the user, the system automatically stops operation.
8. The touchscreen interface supports both Chinese and English (language can be switched).
