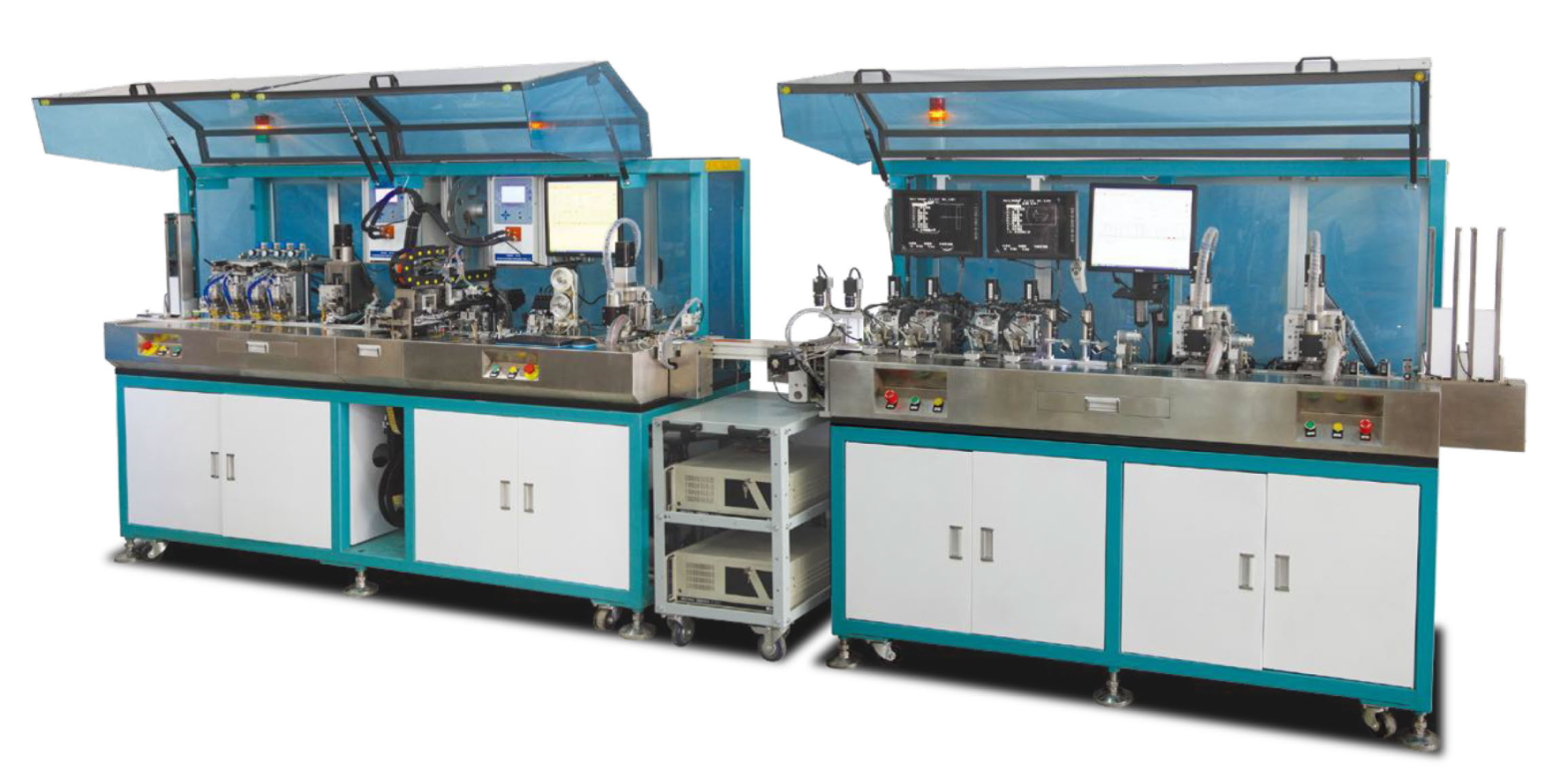

Designed for dual interface card automatic milling, pulling outantenna coil, welding /soldering & embedding.

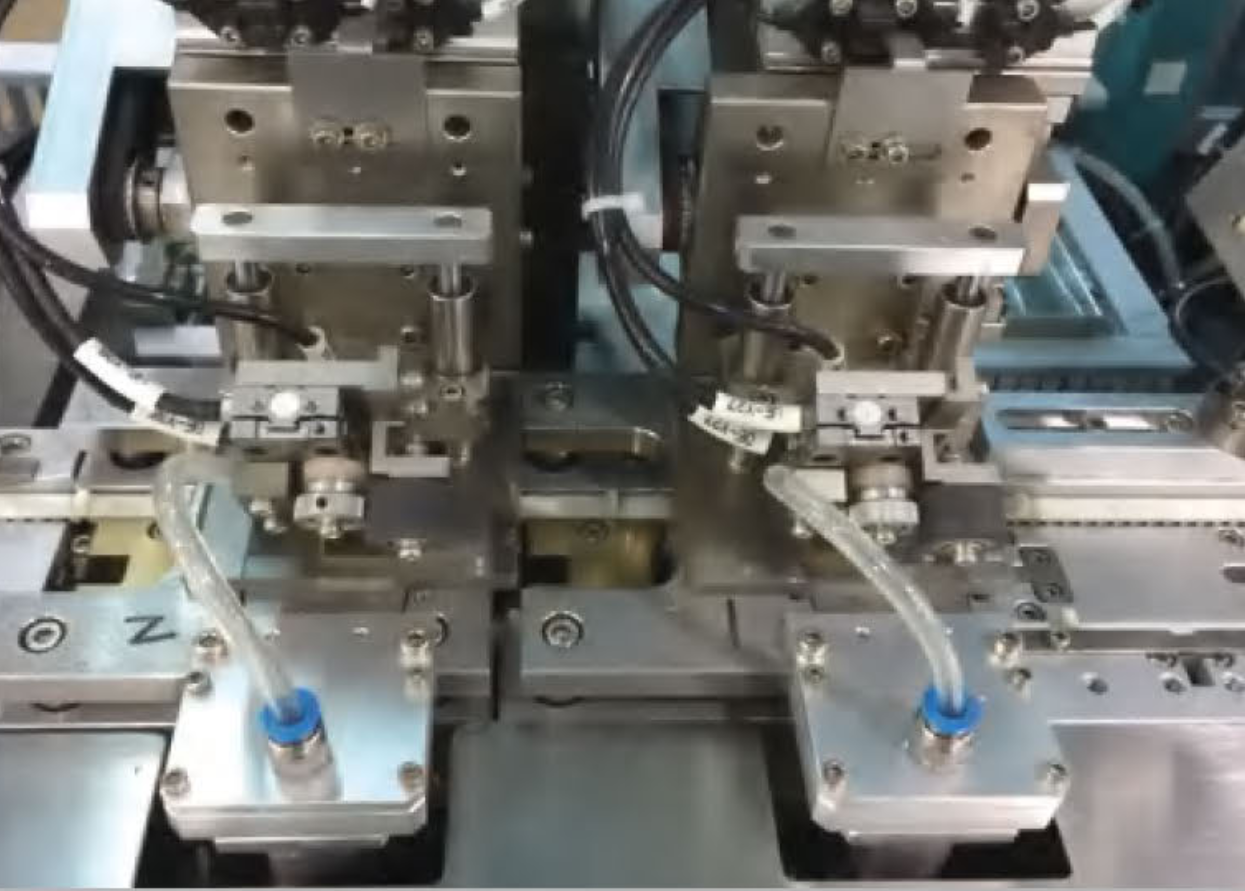

dual interface card automatic milling, pulling out antenna coil, welding/soldering & embedding machine adoptsvision intelligent positioning, servo flexible pulling out antenna coil,touch welding technology. Comparing to manual mode, this machineis faster, more efficient, more accurate and reduces the period ofproduction and the number of defective product.It completes several processes: card input double cards detectionmilling, OCR(vision), pulling out antenna coil, OCR(vision), millingagain, antenna sticking, antenna cutting, antenna alignment, antennadetection, touching welding, chip alignment, chip embedding, hotpressers, ATS, ATR and card output.One machine can conduct a complete production processes, whichincreases the product yield and decrease the labor space. The principleand system structure are Mingsen's exclusive patent.
@Technical Parameters
-Throughput: 3,500 UPH
Card dimension: 86mm x54mm
Card thickness: 0.76mm-1mm
-Total power: 13KW
-Power supply: ~220V 50/60HZ
-Ambient temperature: 0-40°C
-Air supply: 0.6-0.8MPa
-Humidity:15-90%
-Out-line dimension:6700mmx850mmx1750mm
