technical parameter
1. Overall dimension: L800 x W630 x H350 (mm)
2. Weight of the instrument: 200 KG
3. Power supply voltage: AC20V, 50 / 60Hz
4. Rated power: 2KW
5. Test frequency: 30 times / minute (user can adjust)
6. Number of test cards: 10 cards x 3 group test station = 30 cards
7. Control mode: PLC + servo motor + touch screen
Functional configuration
1, meet ISO1037312020, test standard

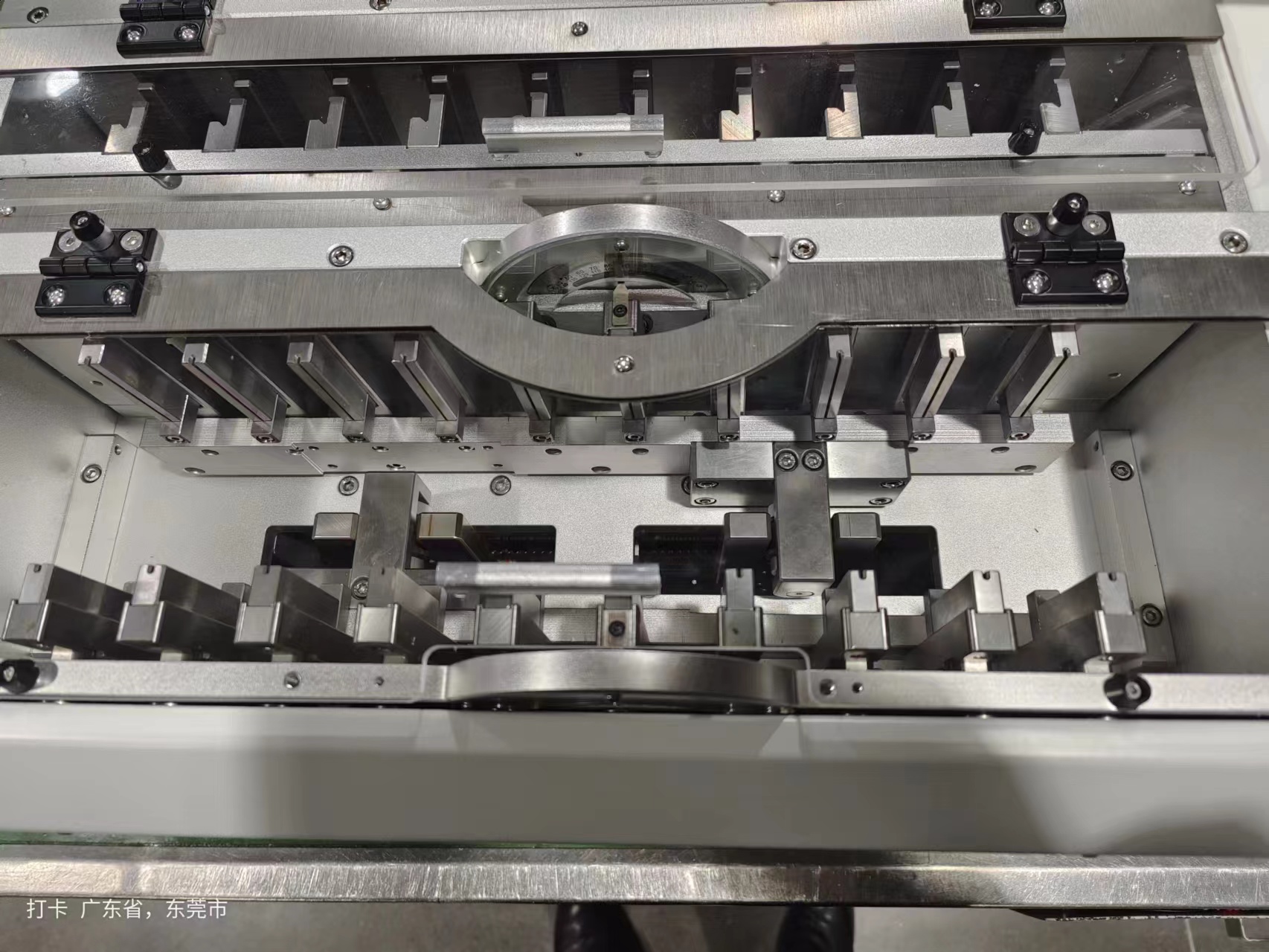

2, the test station is divided into: long side bending, short side bending, distortion test
3. Each group of test station can test 010 cards at each time
4. When the card is installed and inserted, a reserved 1mmspace can be set, squareThe card inserted
5. Test frequency, the standard is 30 times / minute, inspecial cases, Users can also modify the test frequency on the touchscreen
6. The test frequency is controlled and accurate accordingto the running speed of the servo motor True
7. After each test number reaches the set value, stop the operation automatically
8. Touch screen operation interface is Chinese / English(switchable)
