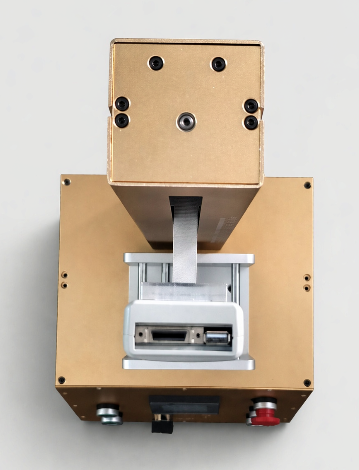

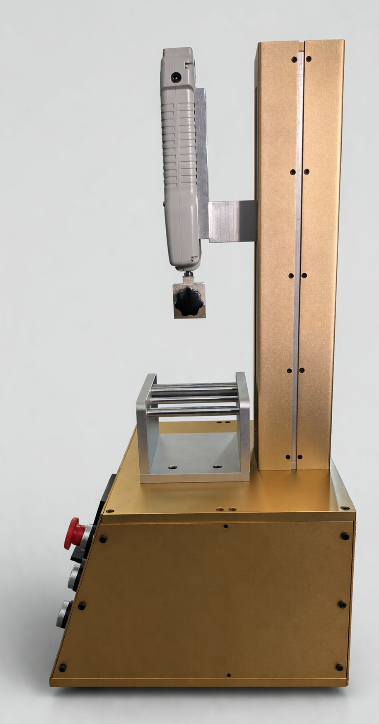

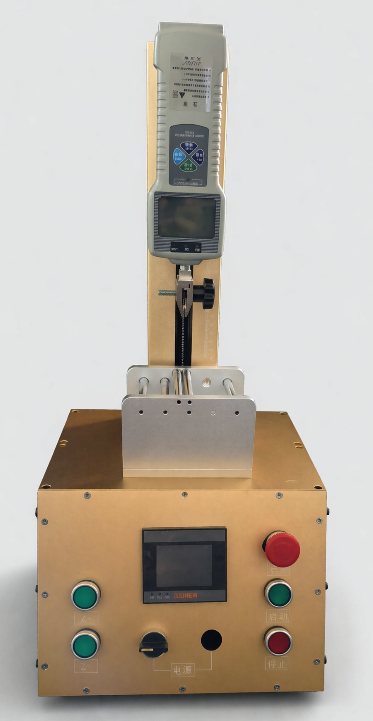

Peel Strength Tester for Smart Cards: High-Precision Auto Peel Strength Tester for Smartcards With PLC, Step Motor, Touchscreen and PC Integration

Introduction to Peel Strength Testing for Smart Cards

Smart cards are core components widely used in payment systems, identity verification, public transit access and secure access control scenarios. The structural adhesion between their embedded chips, contact pads, overlay films and base card layers directly determines the service life and reliability of the finished smart card. Unqualified peel strength will lead to issues such as chip falling off, surface layer delamination and data reading failure in the process of daily use, transportation and repeated insertion and extraction, which brings huge hidden risks to both manufacturers and end users. A professional peel strength tester for smart cards is the essential testing equipment for smart card production quality control, R&D verification and batch product sampling inspection.

Core Advantages of the Auto Peel Strength Tester for Smartcards

Our latest auto peel strength tester for smartcards is developed specifically for the testing requirements of the smart card manufacturing industry, perfectly integrating PLC control system, high-precision step motor, intuitive touchscreen operation interface and optional PC data management module to realize full-process automated testing without manual intervention:

1. PLC Intelligent Control SystemThe built-in industrial-grade PLC core ensures the stability of the whole testing process, avoids data deviation caused by manual operation errors, supports custom testing parameters including peeling angle, peeling speed and holding time, and can adapt to different testing standards such as ISO 10373-1 related to smart card physical performance testing.
2. High-Precision Step Motor DriveEquipped with imported step motor, the equipment can provide stable and constant peeling speed ranging from 10mm/min to 500mm/min, with speed accuracy controlled within ±1%, which eliminates the jitter and speed fluctuation problems existing in traditional manual or pneumatic testing equipment, and ensures the accuracy and repeatability of peel strength test data.
3. Humanized Touchscreen OperationThe 7-inch industrial touchscreen is pre-installed with a visual operation system, users can complete parameter setting, test start and stop, real-time force value curve viewing and historical data query directly on the touch interface, no need for complex professional training, and the operation threshold is greatly reduced for front-line testing personnel.
4. PC Data Management Function & Automatic Value RecordingDifferent from traditional testing equipment that requires manual recording of data, this auto peel strength tester for smartcards can automatically record all real-time force values, peak peel strength, average peel strength and test time in the whole test process. The data can be transmitted to the connected PC through the data cable, and the supporting PC software supports one-click generation of standardized test reports, data classification storage and multi-dimensional data analysis, which is convenient for enterprises to trace production quality and complete compliance audit of industry certification.

Applicable Scenarios of the Peel Strength Tester for Smart Cards

This professional peel strength tester for smart cards is suitable for all links of the smart card industrial chain: smart card raw material manufacturers can use it to test the adhesion performance between card base materials and printing films, smart card production factories can apply it to the quality inspection of finished card products after chip embedding and hot stamping, third-party testing institutions can rely on its high-precision test data to provide authoritative performance certification services, and R&D teams of new smart card materials can also use it to complete the verification of new formula and new process performance.

If you are looking for a reliable, fully automated peel strength testing solution for smart card production and quality control, this auto peel strength tester for smartcards with PLC + STEP MOTOR + Touchscreen + PC configuration and auto record values function will be your cost-effective choice to effectively reduce testing labor cost, improve testing data accuracy and ensure the consistent quality of your smart card products.
