Contactless Wire Embedding

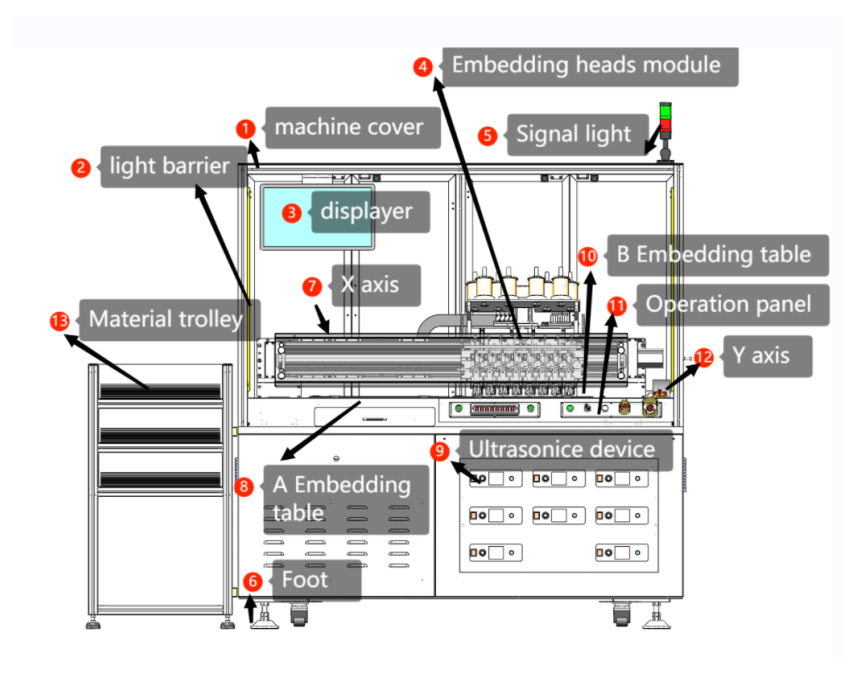

Wire Embedding Machine
Ultrasonic Wire Embedding
Contactless Inlay Production*PC Programmable
Output: Up to 2,400 StandardMifare Coils/Hr
Voltage: 220VAC 50/60Hz
Power: 3kW
Compressed Air: 6kg/cmDims: [L]1600mm [W]1100mm[H]1800mm
The Wire Embedding Machine is the ideal solution formaking your own RF inlays for cards.passports,
and tokens.
Formats:it is user configurable,(depending on thenumber of embedding heads ordered)for any inlay format from 1 to 50
antennae per sheet -with up to a 500mm x610mm sheet size.
Speed: Wire embedding speed bestreferenced as the cycle time to embed a standard five coil antennas would be used for a standard 1S0Mifare card.The WEM will complete a single cycle in 15 seconds.
WEM with a 10 head configurationoutputs 2.400 antennae per hour.Note that antenna shape and size canvary the cycle time.
Embedding Plates: Heavy duty10mm thick.stainless steel withregistration pins, magnets, or anoptional vacuum system to registeiand hold sheets in position.
Accuracy:Using Mitsubishi servosand HIWlN screw drives and rails theWEM-01 maintains an accuracy of +/10 microns.
PC Control: Antenna design specifications are imported via a USB stickinto a PC control system for easy tomanage control of unlimited projects
Sheet Materials: Compatible with allstandard inlay materials such as PVCPEG,ABS.Sheet thickness from 130um to 300um can be accommodated
Antenna Wire: Compatible with allindustry standard copper and coppealloy wire types ranging in thicknessfrom 100um to 160um.
