This 3 wheel tester conformed to CQM2020 Standard,
which can test each area of the card side ,
it's easy to use and maitain, if the 3 wheel worn out , you can replace it in short time,
and the weight are made of copper and fine tuned by standard weight, weigh covers 5N, 10N ,12N ,15N ,20N,
Touchscreen +PLC +Stepping motor or Servo motor , accurate and durable.
You can set the counter and test times on touchscreen easily. 0.5HZ speed available ,also can be adjust speed faster or slower.
Small and compact structure,not too heavy,it is only 19kg can be easily moved inside lab.

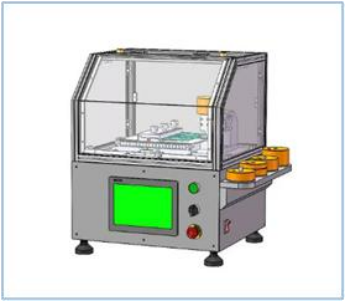

CQM TM-421Three wheel Tester
This completely automatedmachine performs the three-wheel test as outlined inMasterCard's CQM
After the test, the lC cardshould be intact and functionelectronically. An additional weight, for a recommended second test, with a force of 15N is also included
Power: 110 or 220 VAC
50/60 Hz.
Standard Reference: MedCOM Test Reference: TM-421
COM Test Method: 13.2.1.31TM-421: Three Wheel Test
program.
A card is positioned in themachine such that the therollers will cycle 100 timesover the front (50) and thenback (50) ofthe lC with a
cycle frequency of 0,5 Hz anda downward force of 8N
