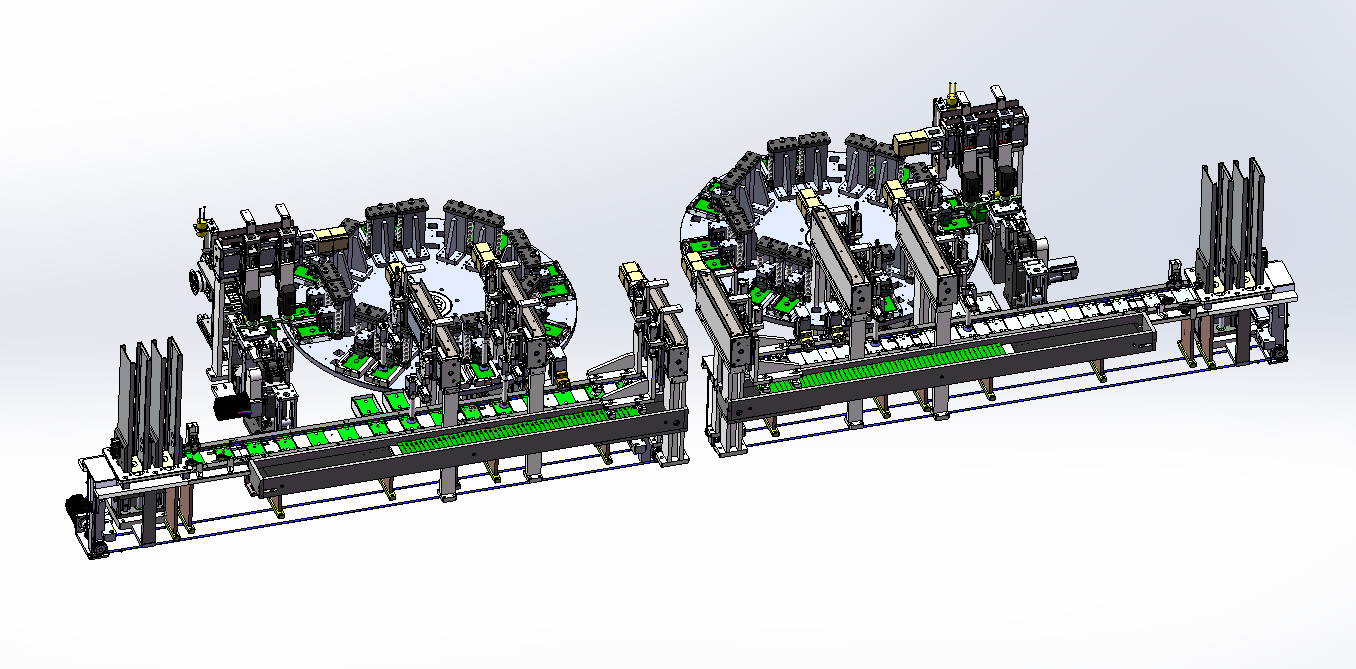

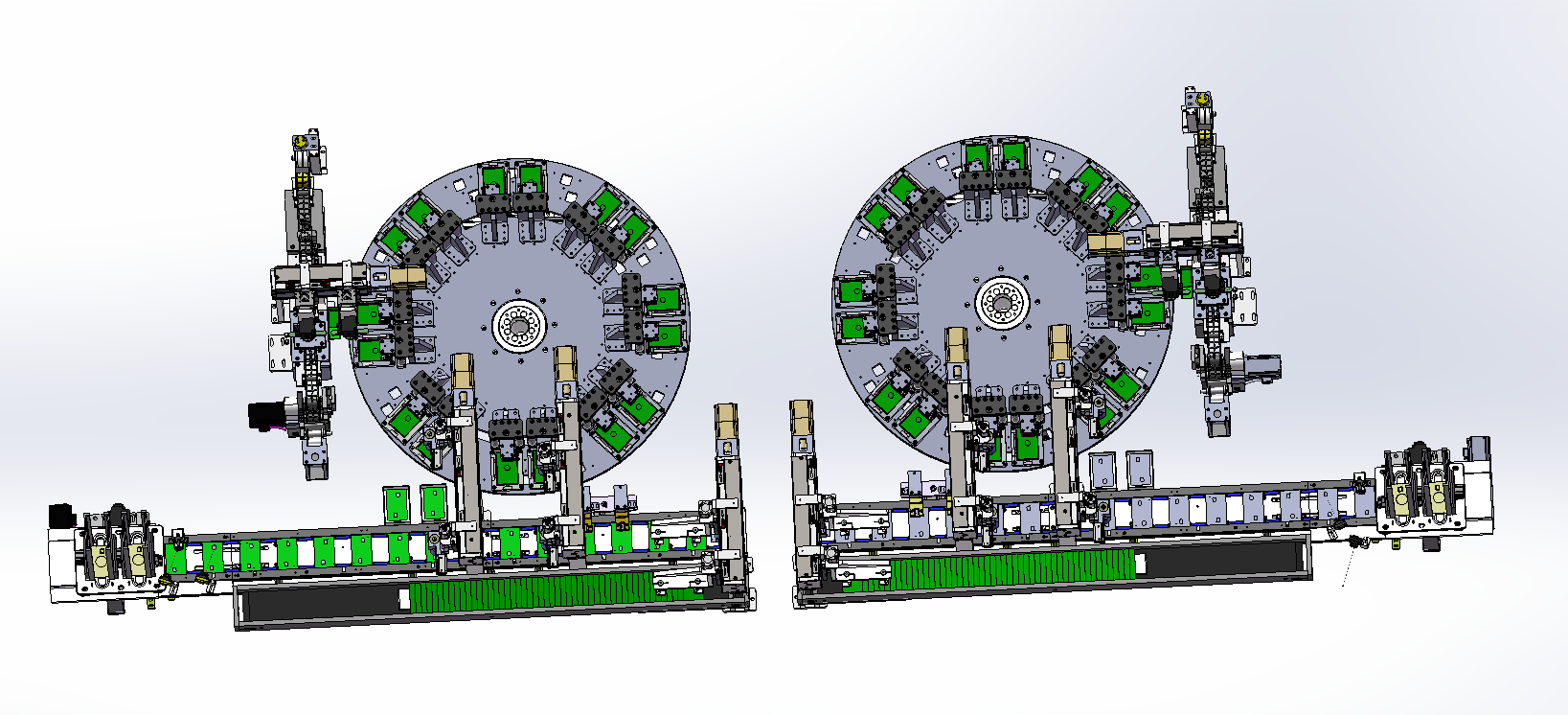

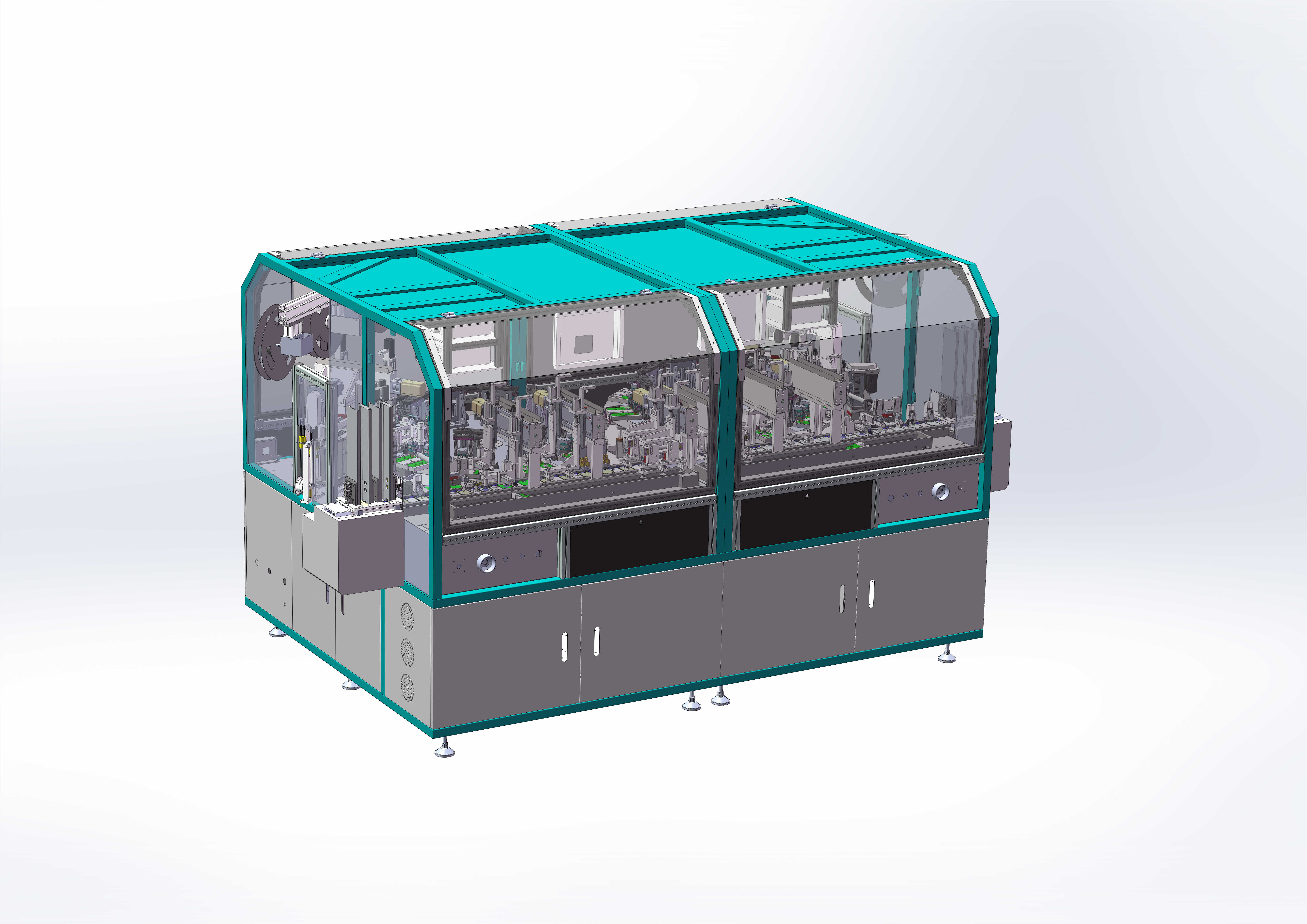

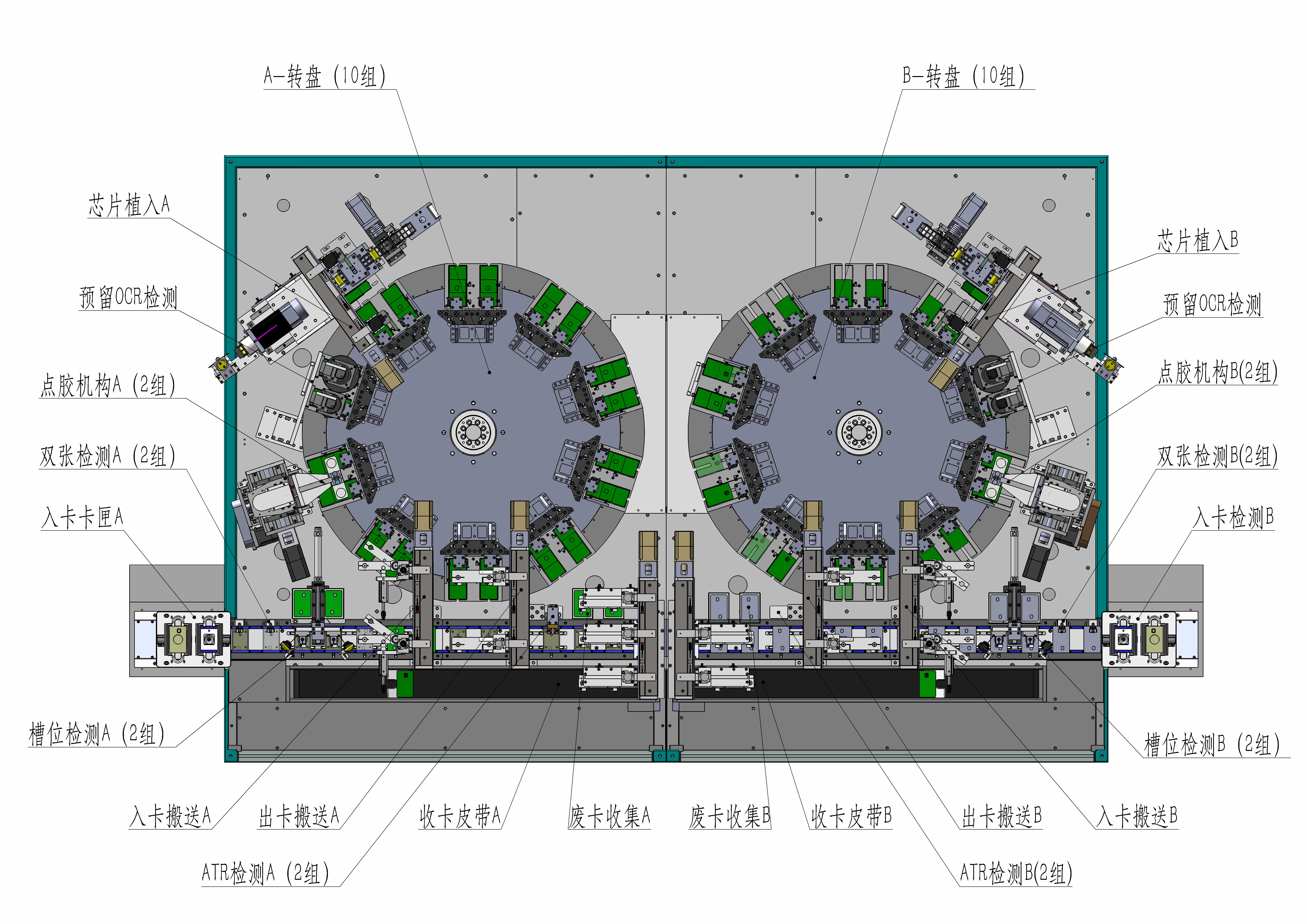

Anti-tampering smart cards implanting machine

Item

Specification

Main Control System

KEYENCE PLC (Japan)

Servo System

Yaskawa (Japan)

Pneumatic Components

SMC (Japan) / CKD (Japan) / FESTO (Germany)

Sensors

Panasonic (Japan)

Motion Parts

HIWIN (Taiwan, Lead Screws / Guide Rails)

Power Unit

Mean Well (Taiwan)

Overall Dimensions (L×W×H)

3000mm × 1780mm × 1860mm

Weight

Approx. 1900 KG

Power Supply

AC 220V, 50Hz

Power Consumption

5 KW

Compressed Air

6 kg/cm²

Air Consumption

230 L/min

Control Mode

Servo Motor + PLC Control

Positioning Accuracy

0.01 mm / pulse

Operator Required

1 Person

Throughput (UPH)

5,000 cards/hour
