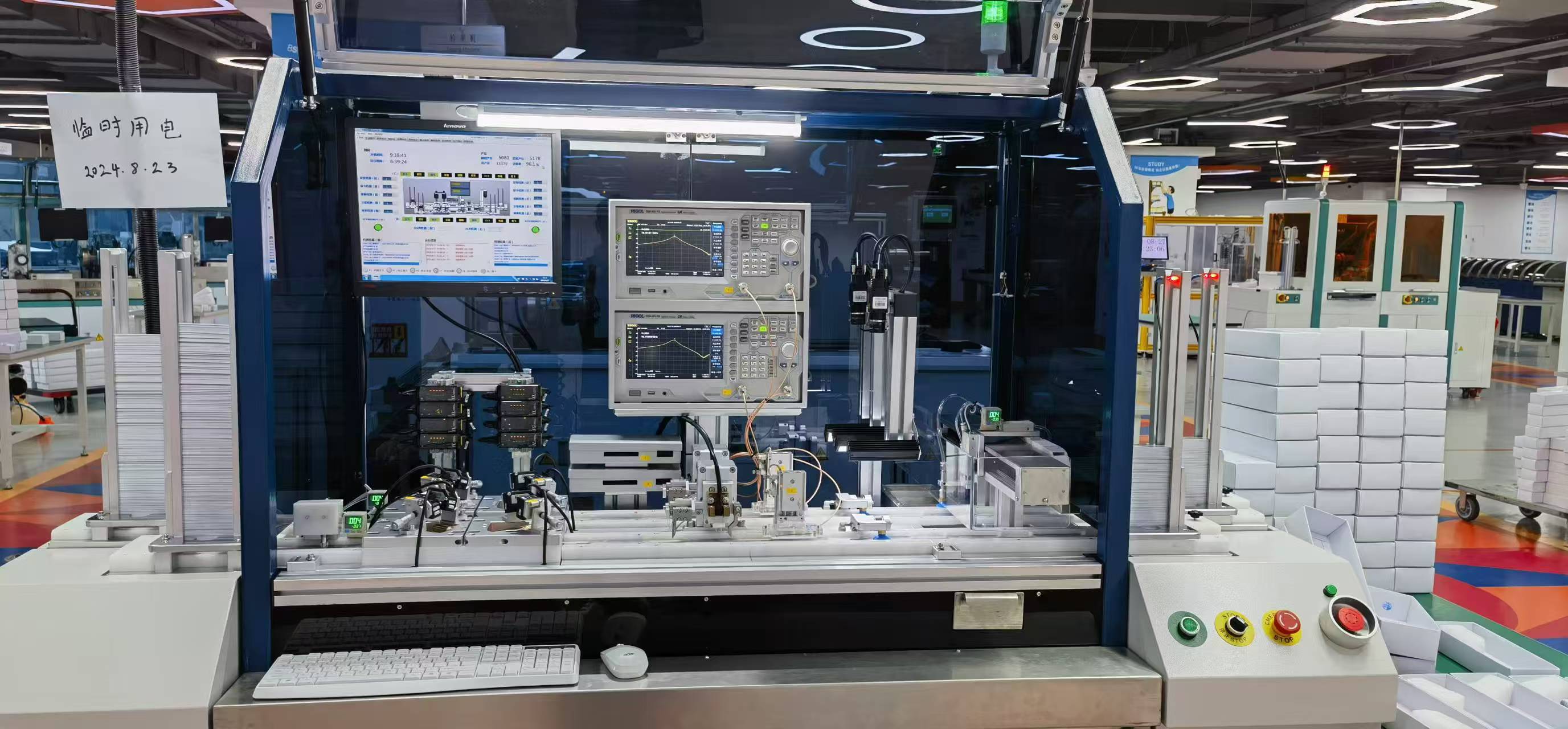

CTS-01 machine inspection line for IC cards

Card Testing System

CTS-01/SMAAT-01

Card Testing System Bending

Module Adhesion

RF Frequency & Q Factor

Module Height Measurement

ATR & ATS Testing

Output: 5000-6000 Cards/Hr

Voltage: 220V AC 5060Hz

Power: 2.8KWCompressed Air: 6kg/cm3 150 Umin

Dims:L2480mmW830mm H 1950mm

Protect your reputation for qualityassurance with the CTS-01. the ideal solution for high-speed,automated testing of dual interface contact, and contactless smart

cards.

It tests module bonding.antenna connections, RF stability, and functionality of contact and

contactless interfaces.

Card Flexing: The card body is flexed 30 across the module embed-ding area.Laser sensors detect separation between module and cavity-rejecting cards with poor adhesion.Flexing prior to RF testing also helps to ensure that the connection between antenna and module is

secure.

RF Testing: Build customer confidence with guaranteed delivery of cards within a set RF range.Two Rigel spectrum analyzers provide accurate frequency and Q- Factor test results.Custom

Smartware <TMJ testers for additional analysis are available

Removable Magazines:Input

and output magazines are interchange-able and can be used with other machines for easier loading with less handling.

Module Height Test: in line gauges from Keyence accurately measure embedded module height, ensuring that only good cards make it to the shipping department

ATR & ATS Testing : Ensure that contact and/or contact less interfaces are functioning properly after flex testing by communicating With the lC chip.For contact less cards, this may be the only point during production when these tests can be performed economically and at high speed.

Vision Inspection System: An option that will detect and eliminate anomalies related to module alignment and placement within the cavity; it identifies and rejects modules with visible surface defects such as scratches,smudges, or fingerprints.

Card Orientation: An optional sensor that separates cards loaded in the wrong orientation or version prior to testing, shipping &

personalization.
